Arundel Cathedral Fire Door Upgrade

FD30/S Fire Protection & Compartmentation

Heritage Building • West Sussex

Project Overview

Upgrade of 19 existing timber doors at Arundel Cathedral to achieve FD30/S fire performance, alongside improvements to fire compartmentation throughout the building.

Works were carried out within a live heritage environment, requiring a sensitive and compliant approach.

Achieve FD30/S Compliance

Upgrade doors to meet fire resistance standards

Improve Compartmentation

Enhance fire and smoke separation

Retain Original Features

Minimise Disruption

Work within a live environment

Provide Certification

Full documentation and compliance

Scope of Works

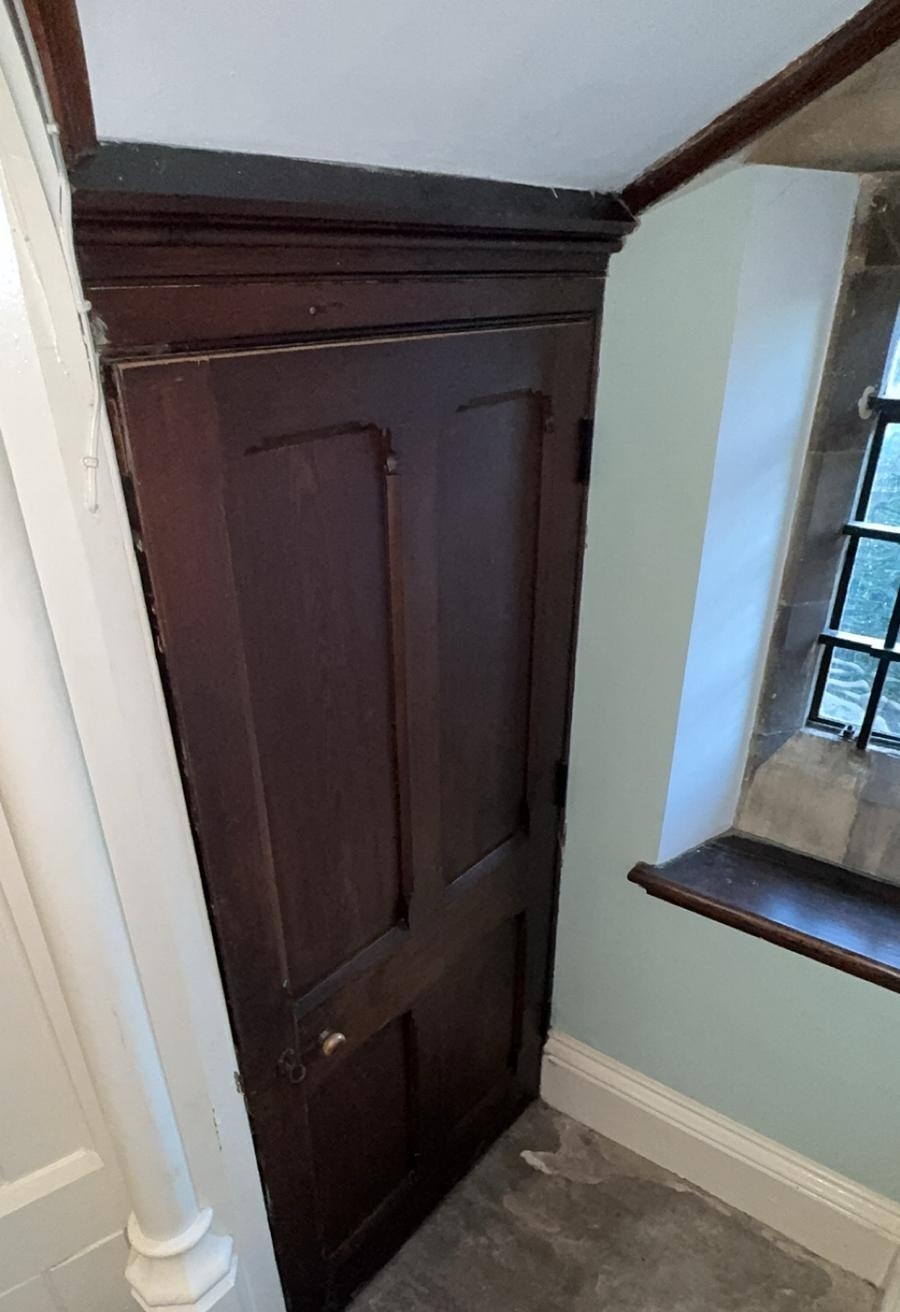

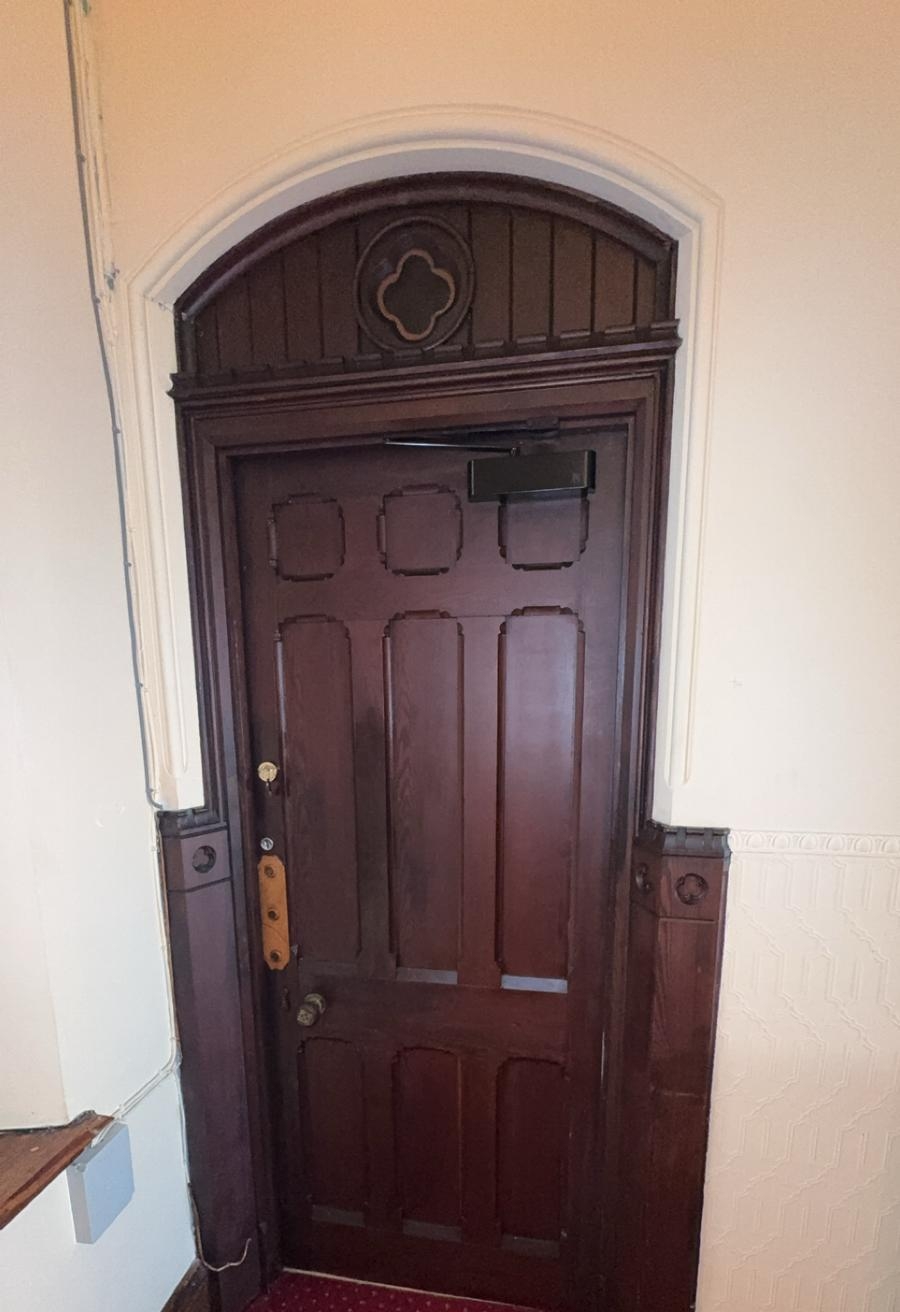

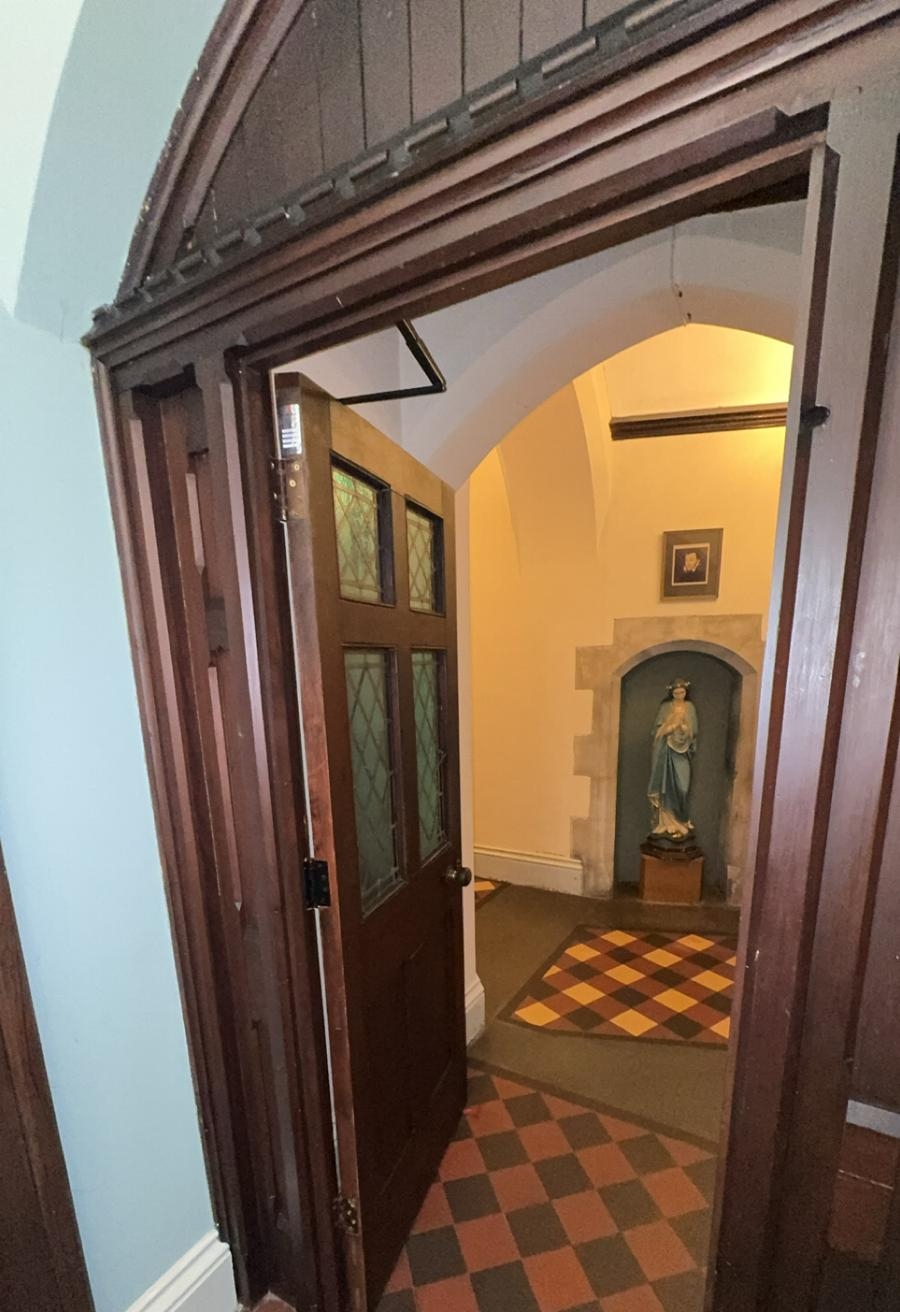

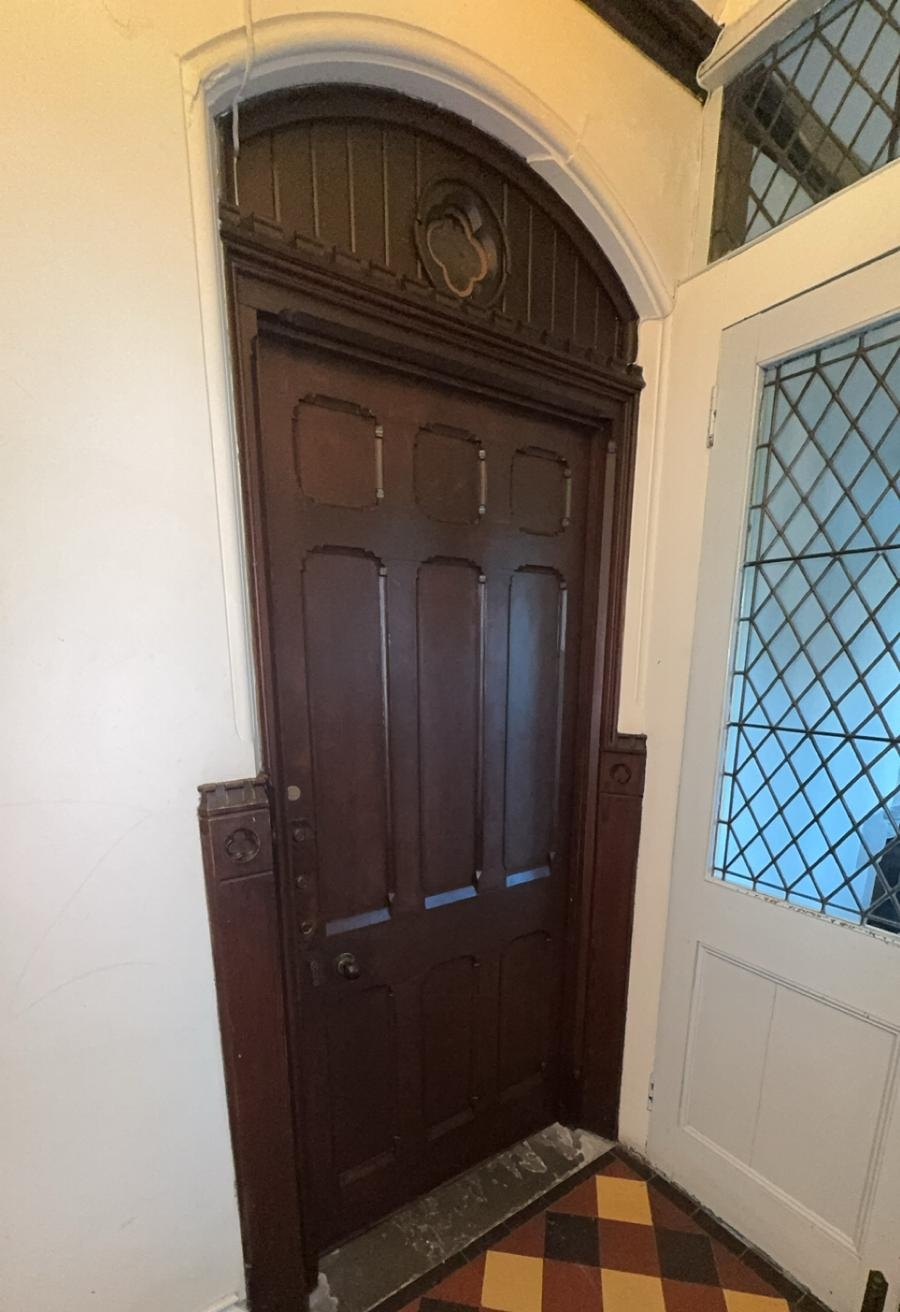

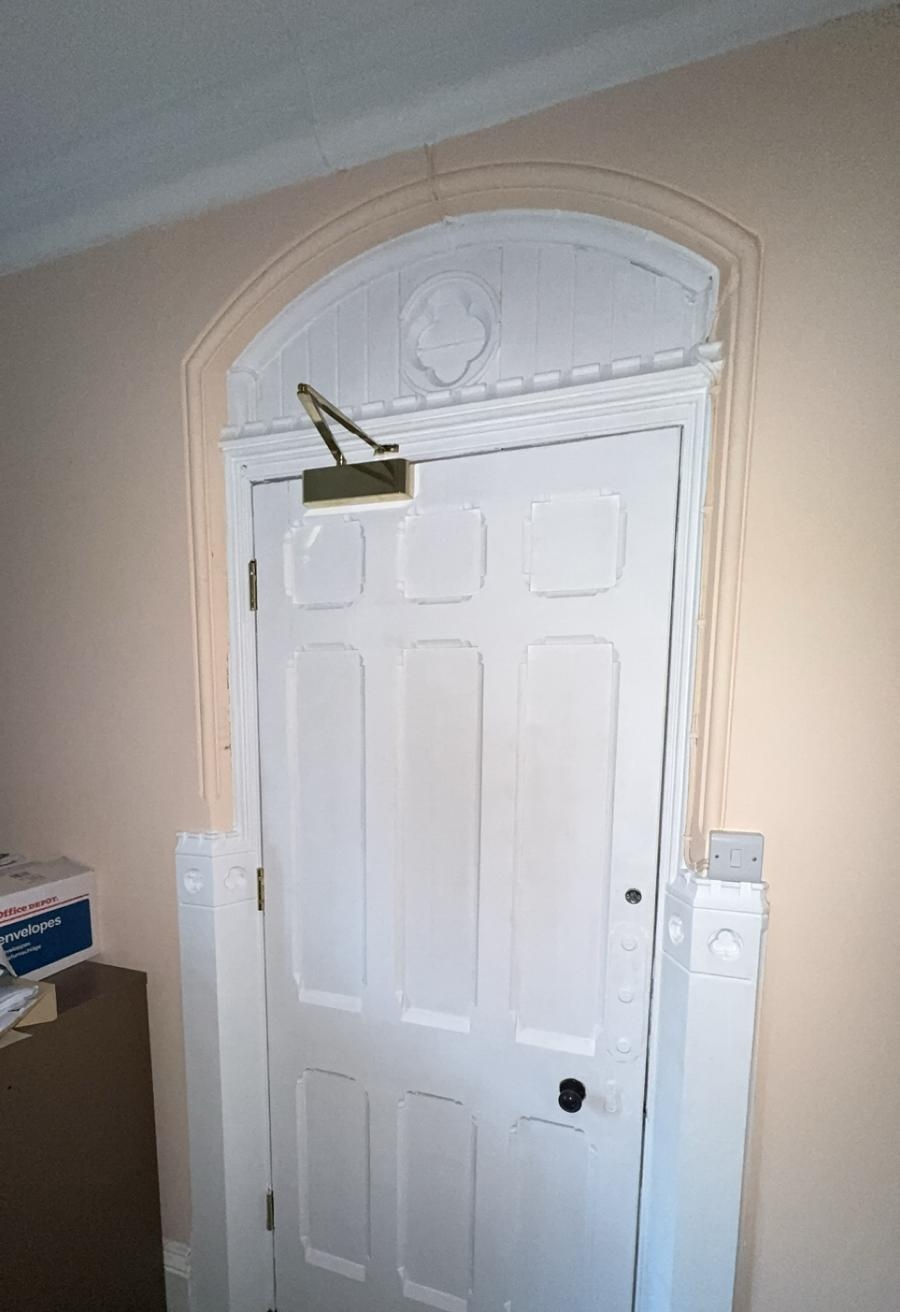

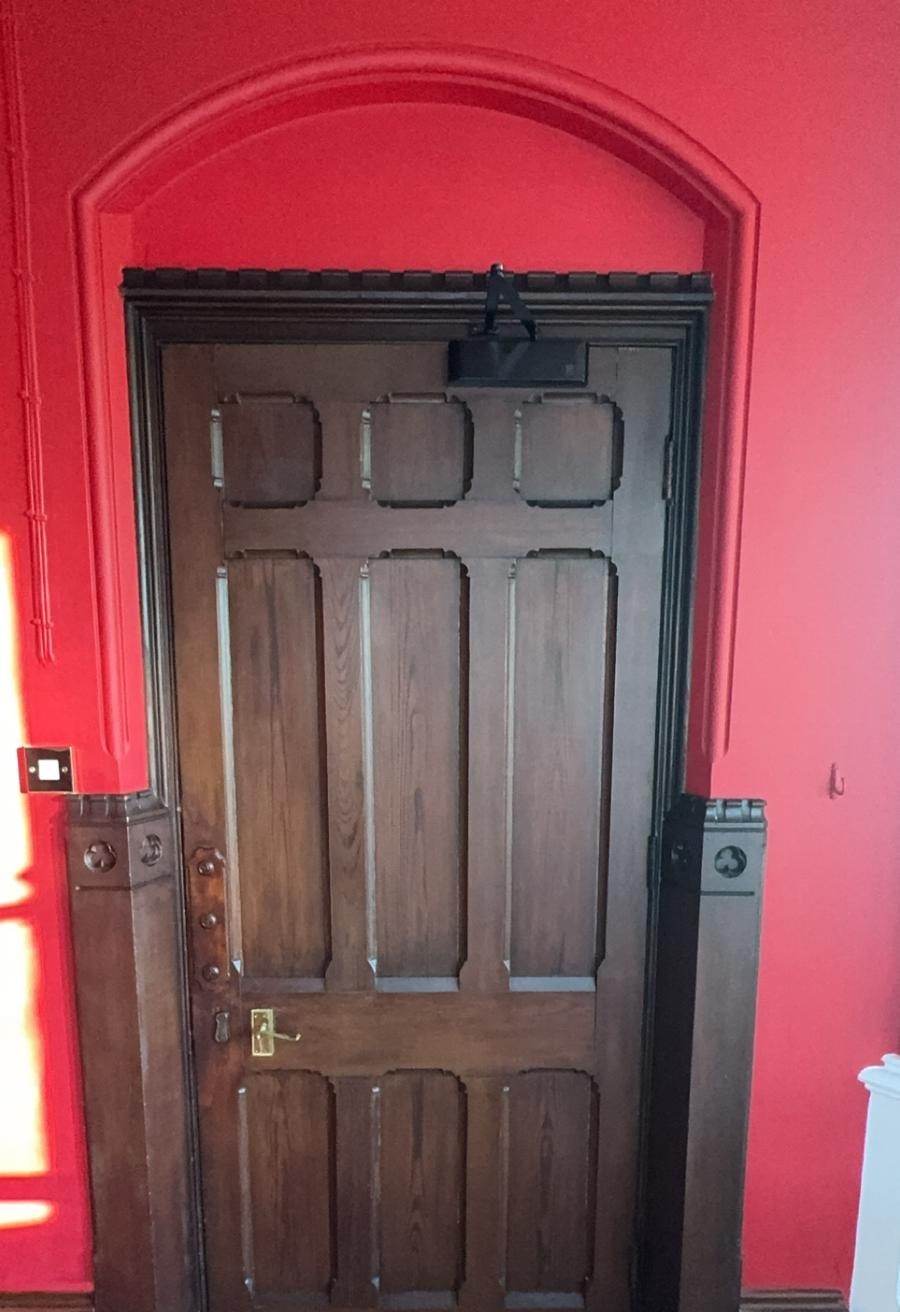

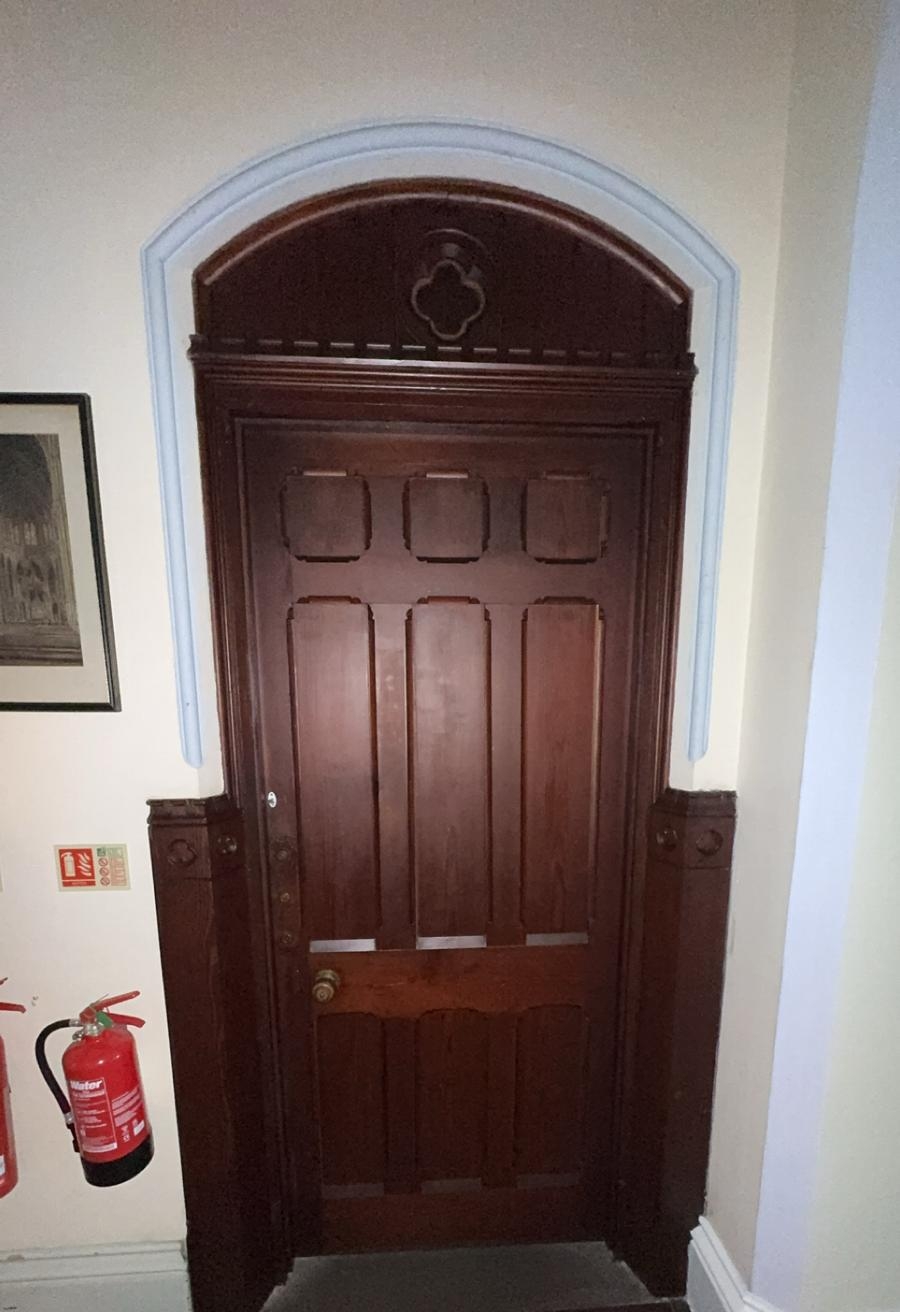

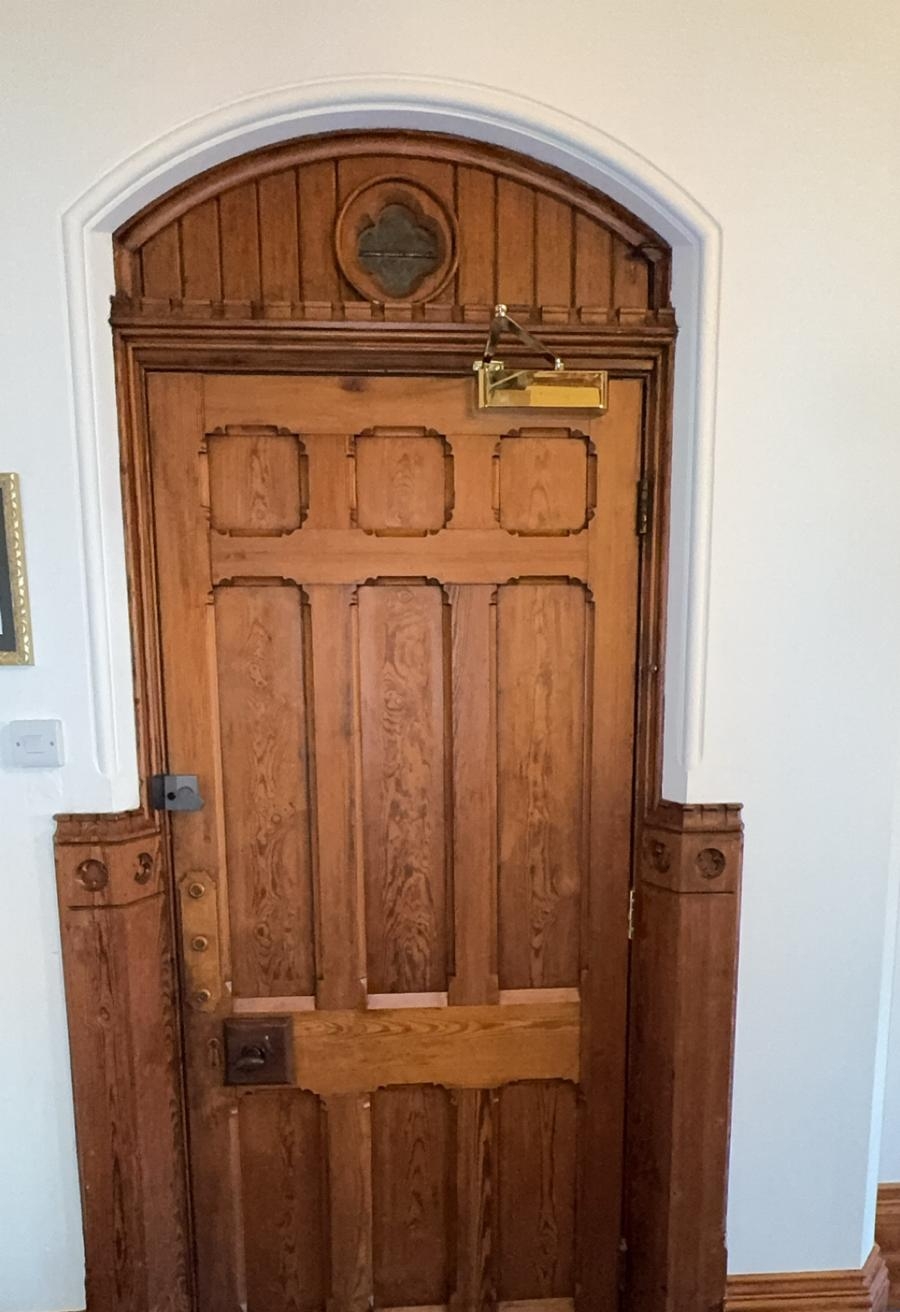

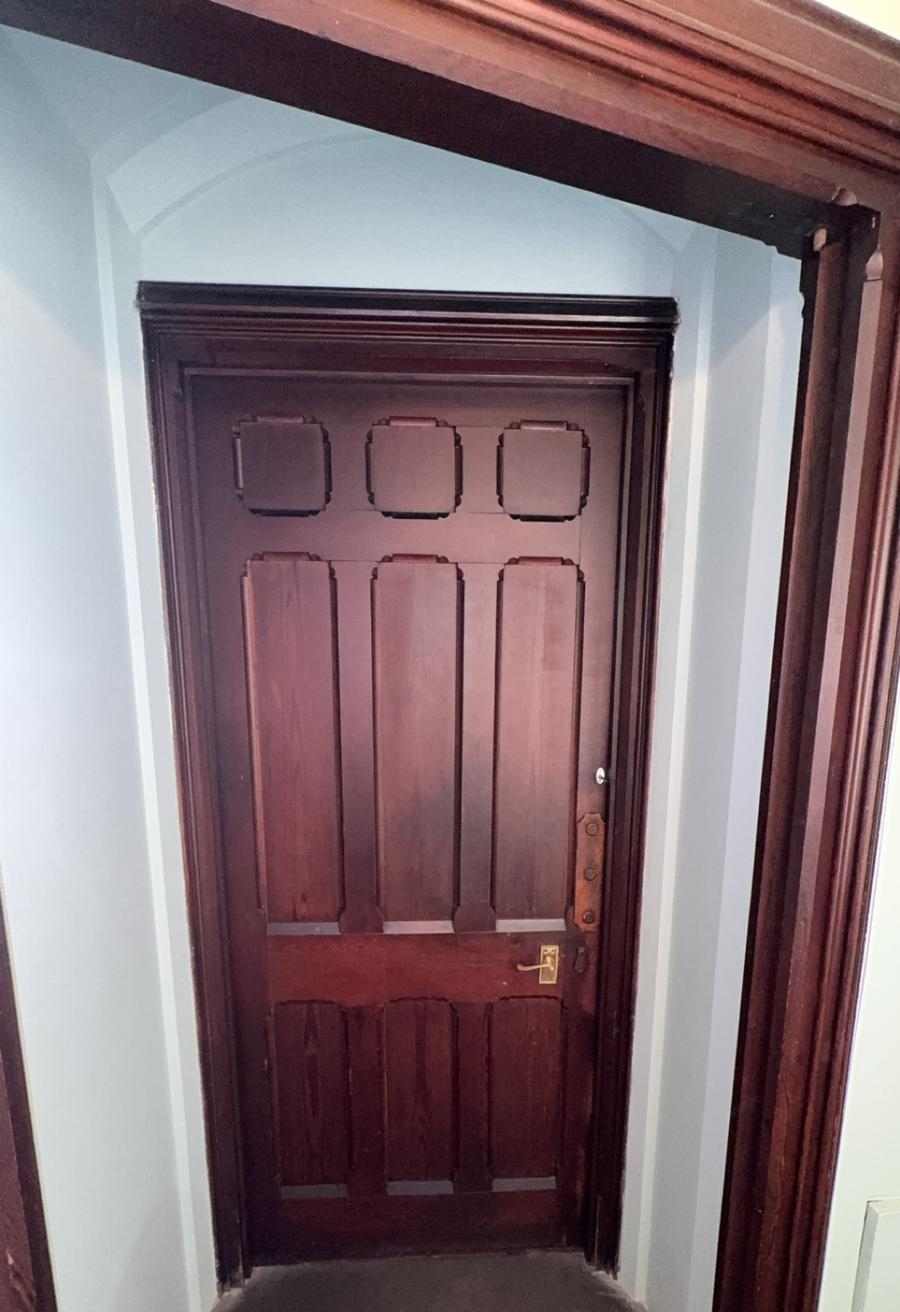

A total of 19 existing timber doors were upgraded as part of the project.

Intumescent fire & smoke seals installed
Hardwood lipping added
Fire-rated hinges and closers fitted
Intumescent coating systems applied
Fanlight openings sealed
Glazing film installed
Thresholds adjusted

Technical Solution

A specialist intumescent coating system was applied to the existing timber doors, allowing them to achieve 30-minute fire resistance while maintaining their original appearance.

The system expands when exposed to heat, forming an insulating char layer that slows fire spread and protects the underlying material.

Installation Process

1. Survey & Planning

Door-by-door assessment and scheduling

2. Preparation

Repairs, lipping and surface preparation

3. Application

Intumescent coatings and seals installed

5. Handover

Certification and fire log provided

4. Installation

Ironmongery and hardware fitted

Compliance & Standards

FD30/S fire-rated performance achieved

Meets current Building Regulations

Installed to manufacturer specifications

Full certification provided

19 Doors Upgraded

All doors brought to FD30/S standard

Improved Fire Safety

Compartmentation and smoke control enhanced

Heritage Preserved

Original doors retained and upgraded

Fully Compliant

Fire strategy requirements met
